Structural Inspection Record

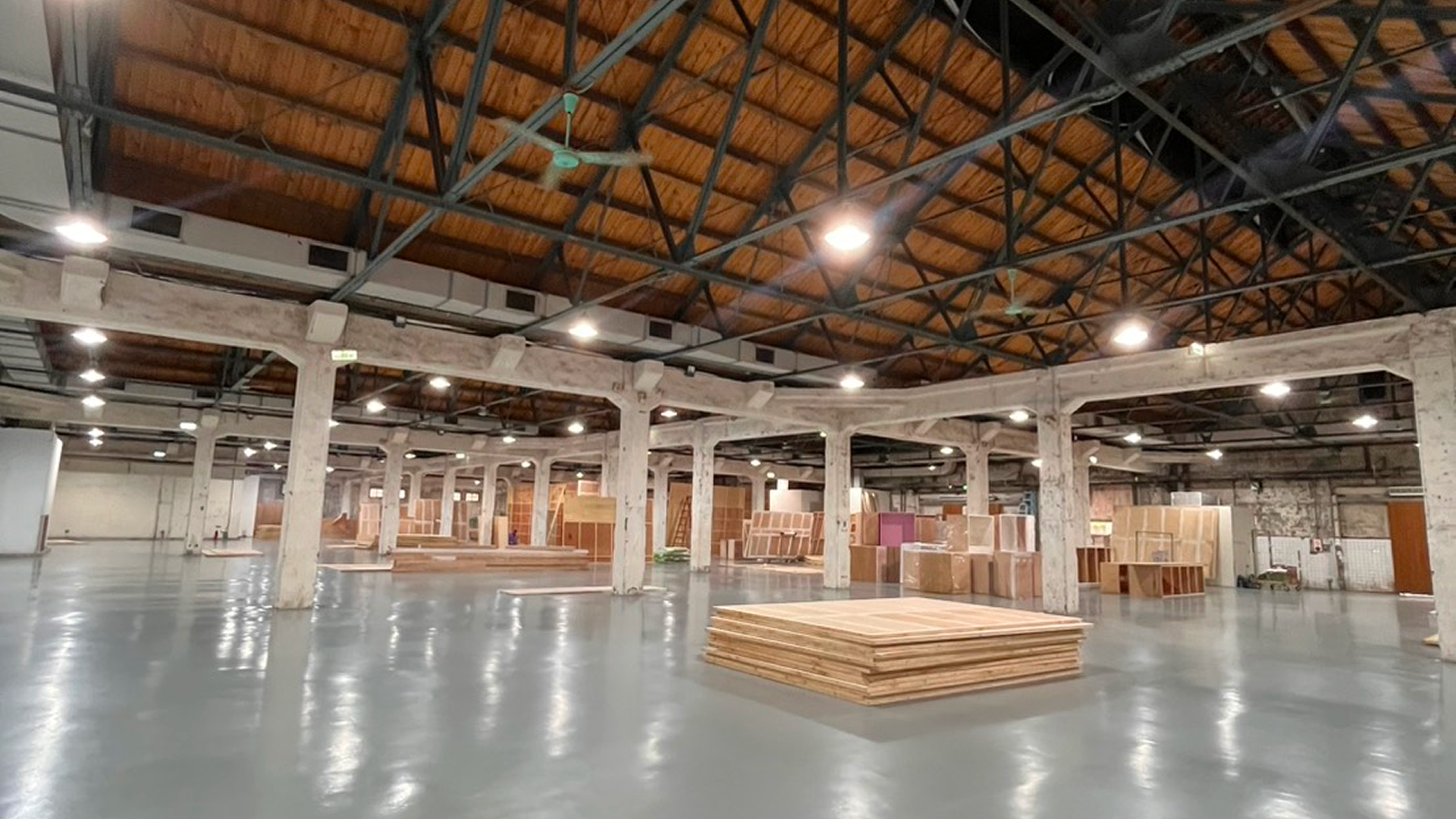

Site inspection check matching the compiled technical drawing coordinates to raw structural points. Resolving base misalignment.
The Spatial Coordination
Due to strict character licensing rules and copyright restrictions, the primary challenge of this project lay not in structural aesthetics, but in the rapid, absolute precision of the physical setup. The licensed partner required a 180m² pop-up retail venue built overnight inside a luxury shopping center.
As the Technical Staging Coordinator and Construction Director, my responsibilities were structured across two critical phases:
- Initial Phase (Drawing Organization): Preparing, sorting, and organizing the technical floor plans, carpenter framing sheets, and trade drawings. This phase required millimeter checks to ensure partition walls bypassed mall structural columns and structural load ratings were satisfied.
- Execution Phase (Contractor Trade Calibrations): Directly supervising 6 contractor crews (carpentry, electrical wiring, paint, graphics decals, safety barricades, and logistics) on-site. Managing parallel scheduling allowed painters and decal teams to follow carpenters in a staggered layout, completing the build in 42 hours.
Blueprint Index
CK-01
Trade Stagger Matrix
Carpentry framing completed in Zone A by Hour 12. Decal applications commenced by Hour 14 while carpentry transitioned to Zone B. Zero collision of active trade workers achieved across all 180m² of space.
Stage 1: Drawing Verification & Carpentry Setup

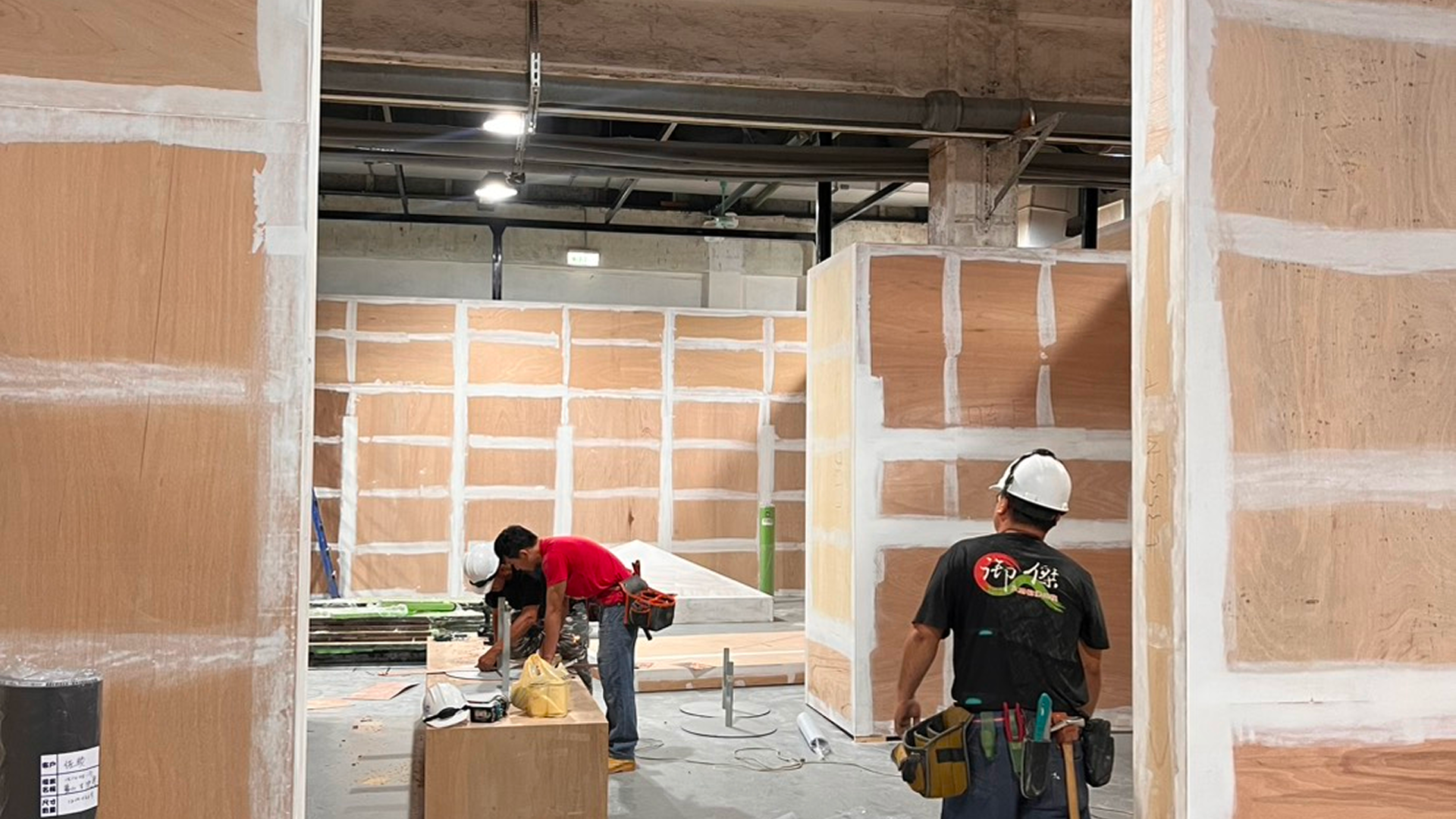

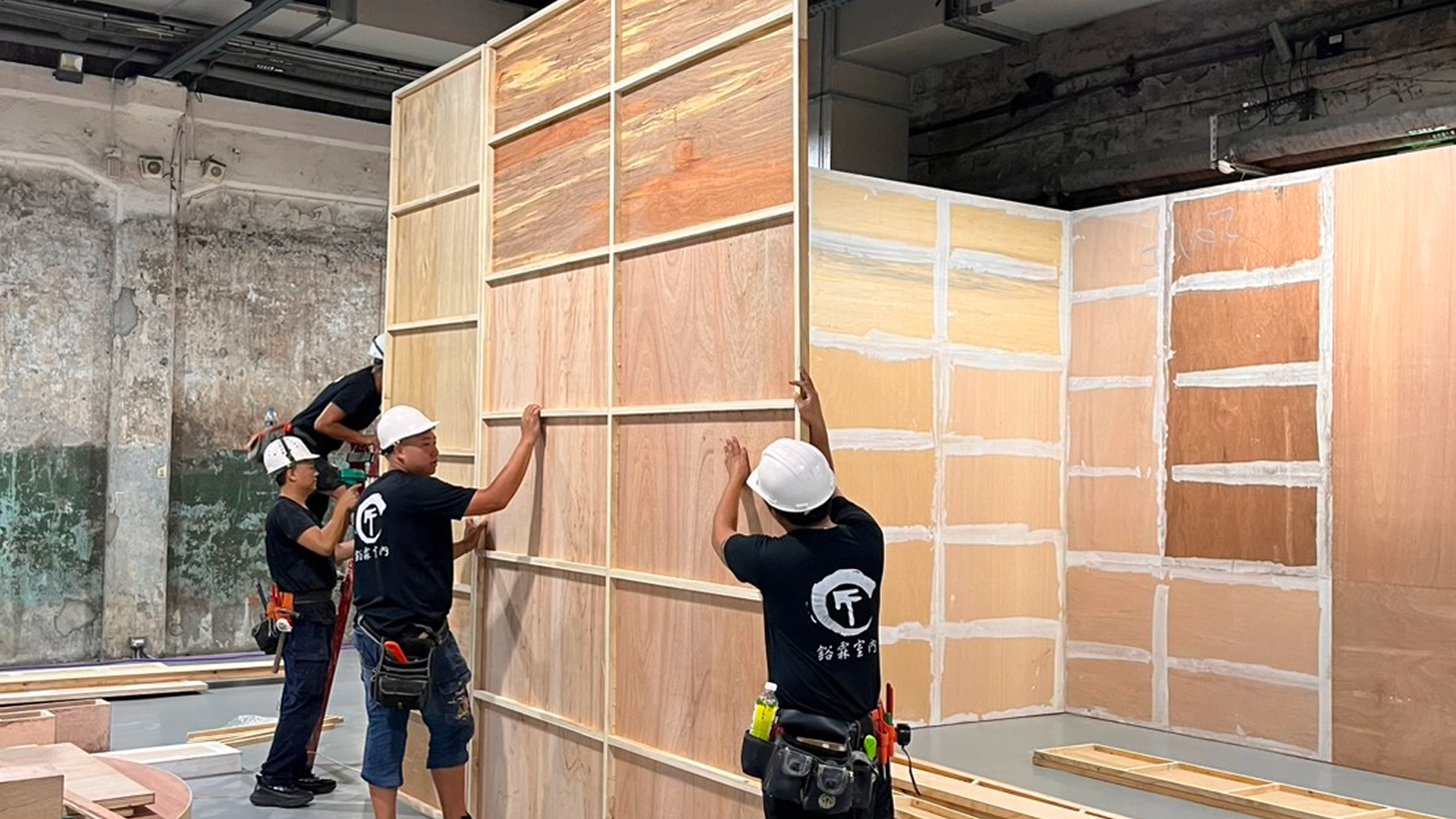

Carpentry Leveling Calibration
Aligning vertical timber partitions. Checked tolerances against elevation drawings to guarantee a perfectly flush surface for decal graphic wrapping.
Stage 2: Multi-Trade Staging & Graphic Cladding

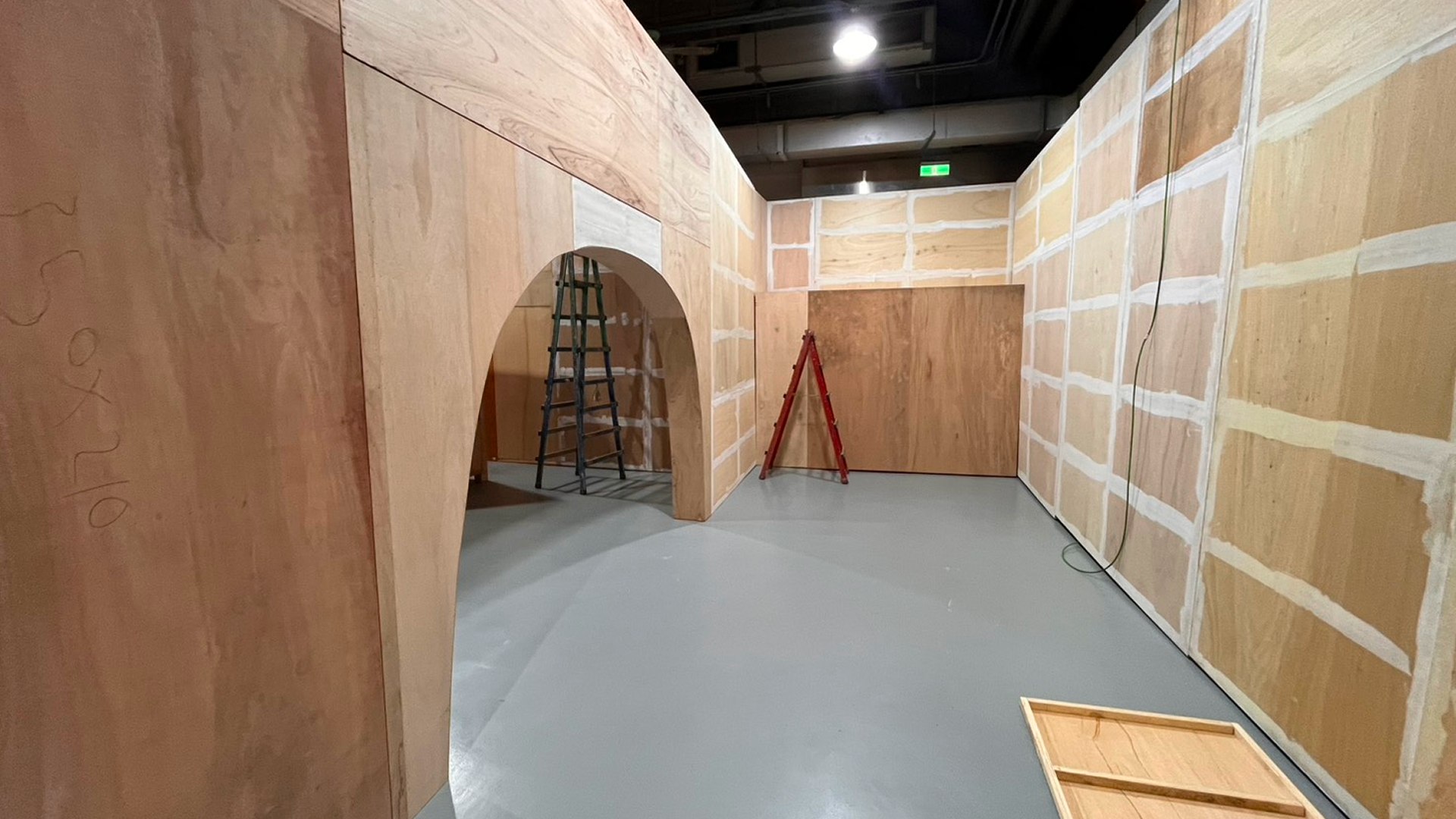

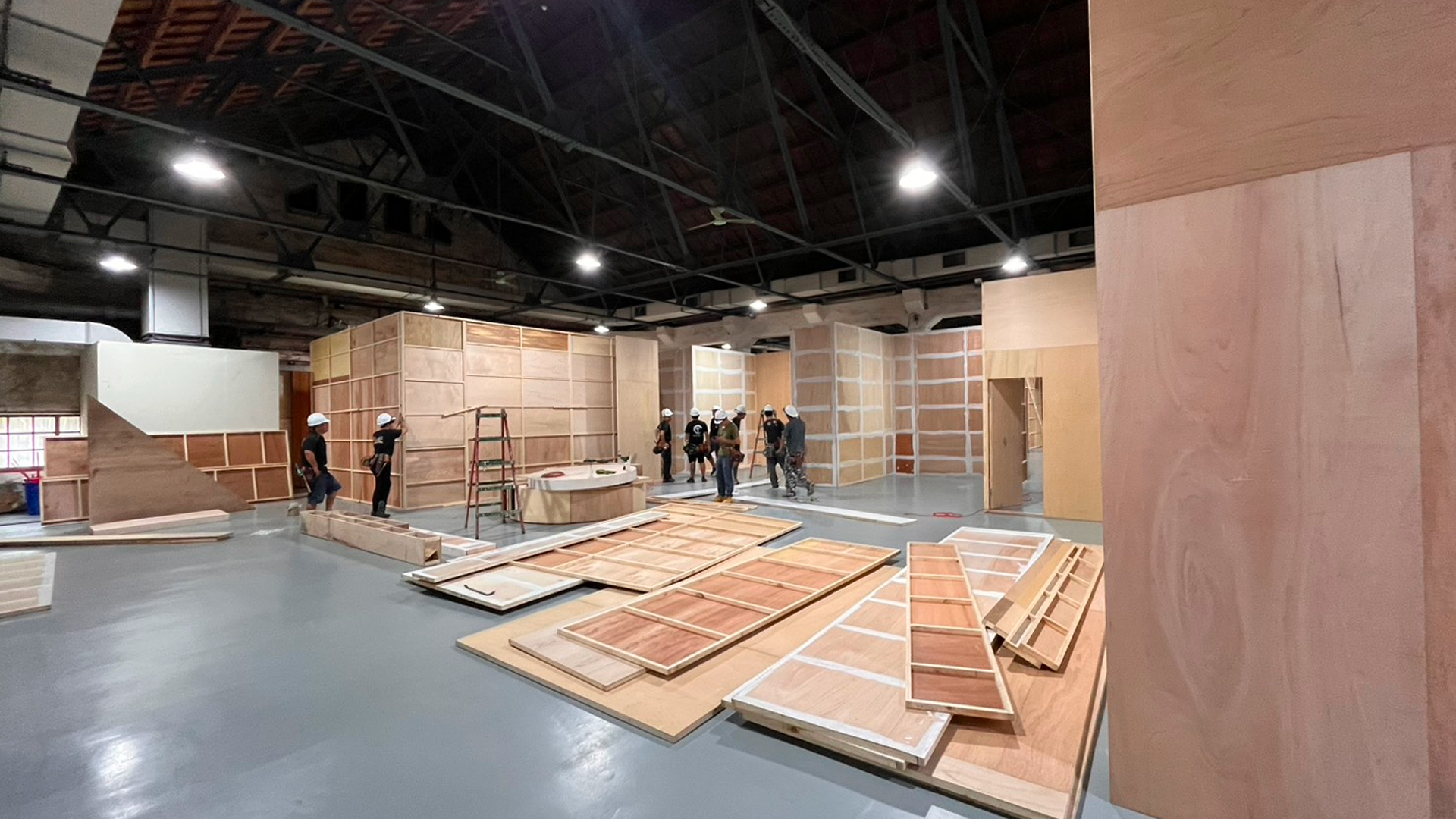

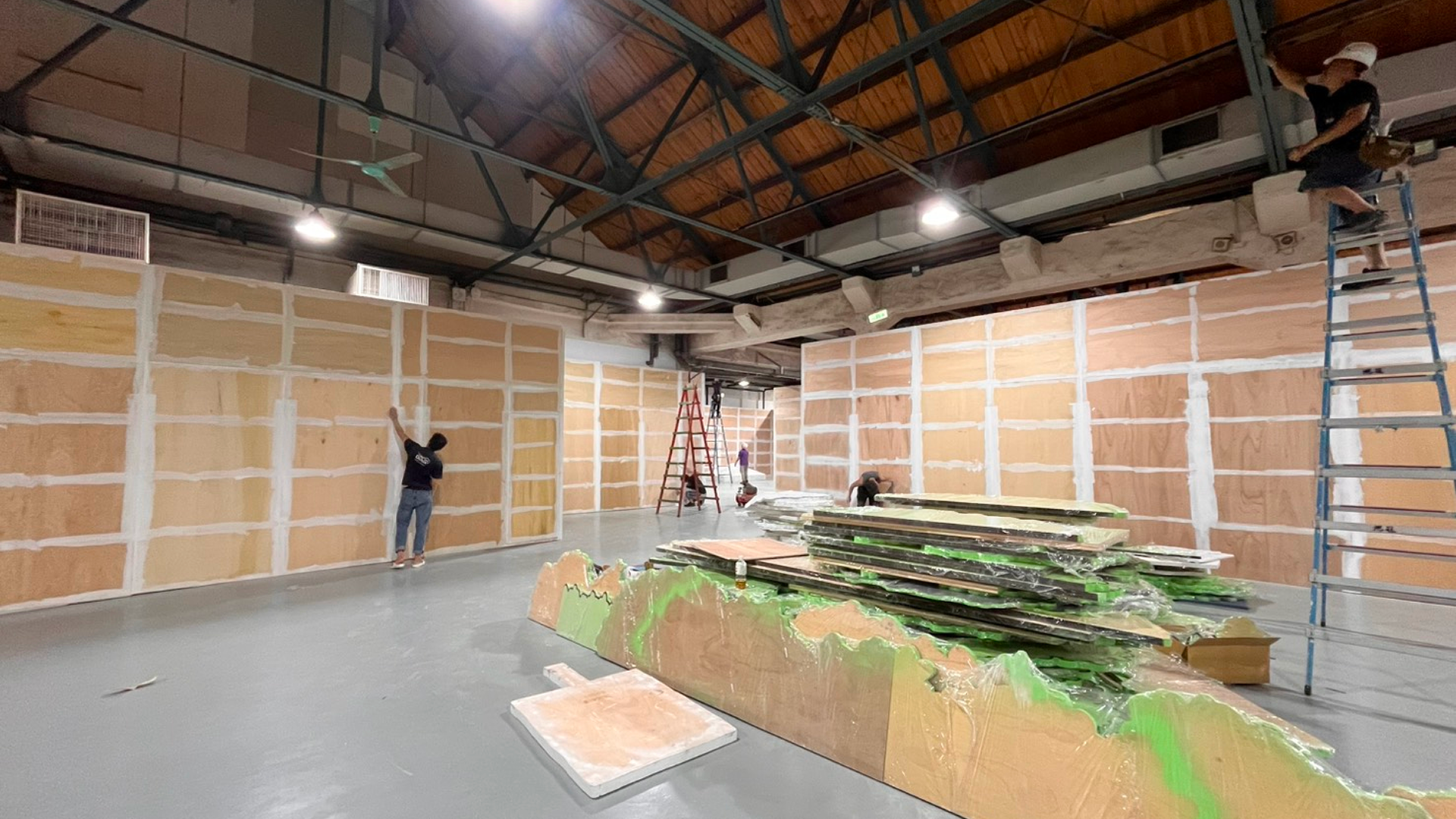

Partition Wall Mounting
Erecting freestanding partition backings. Coordinating carpenters and painters to prep the base surfaces.

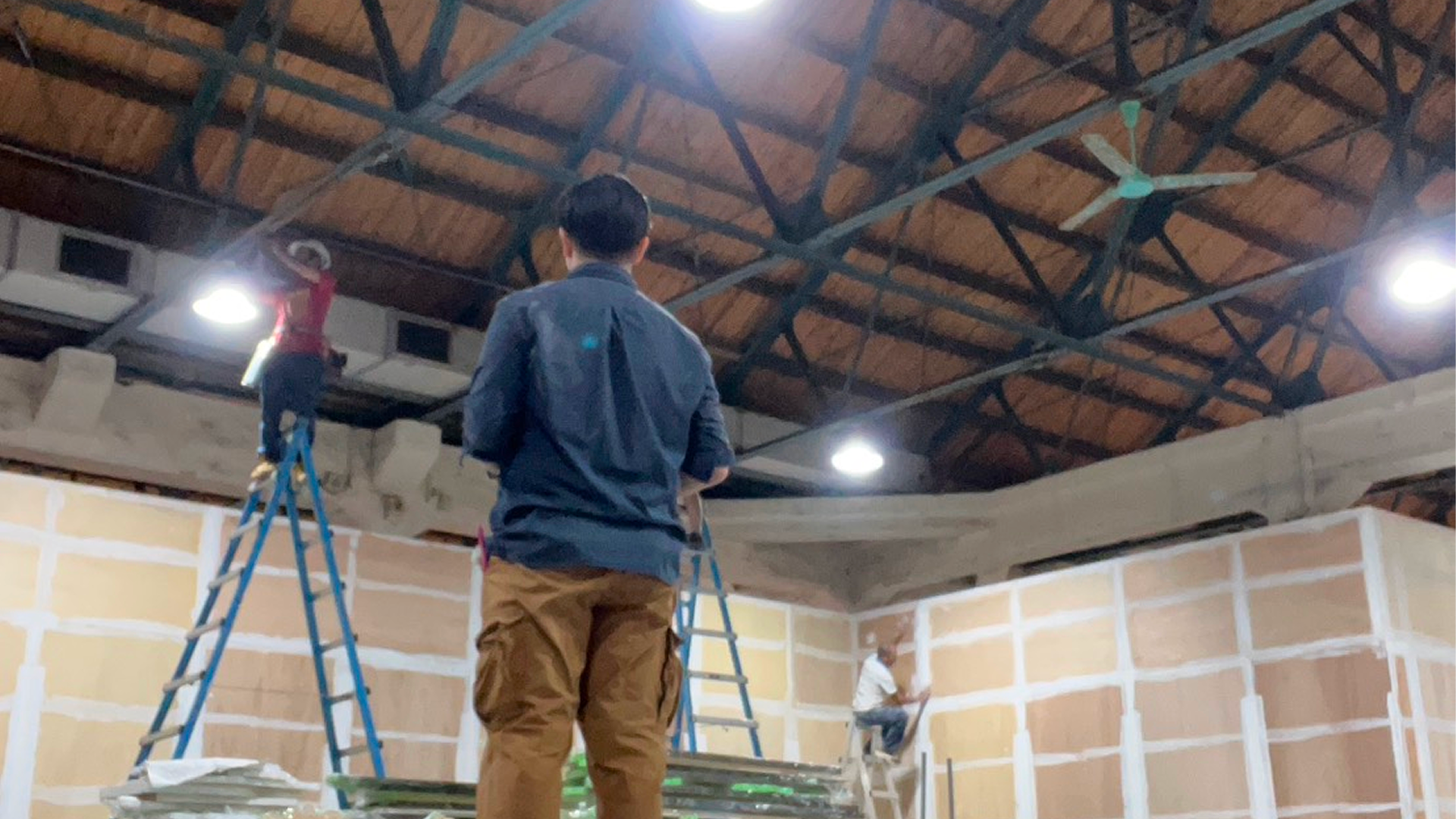

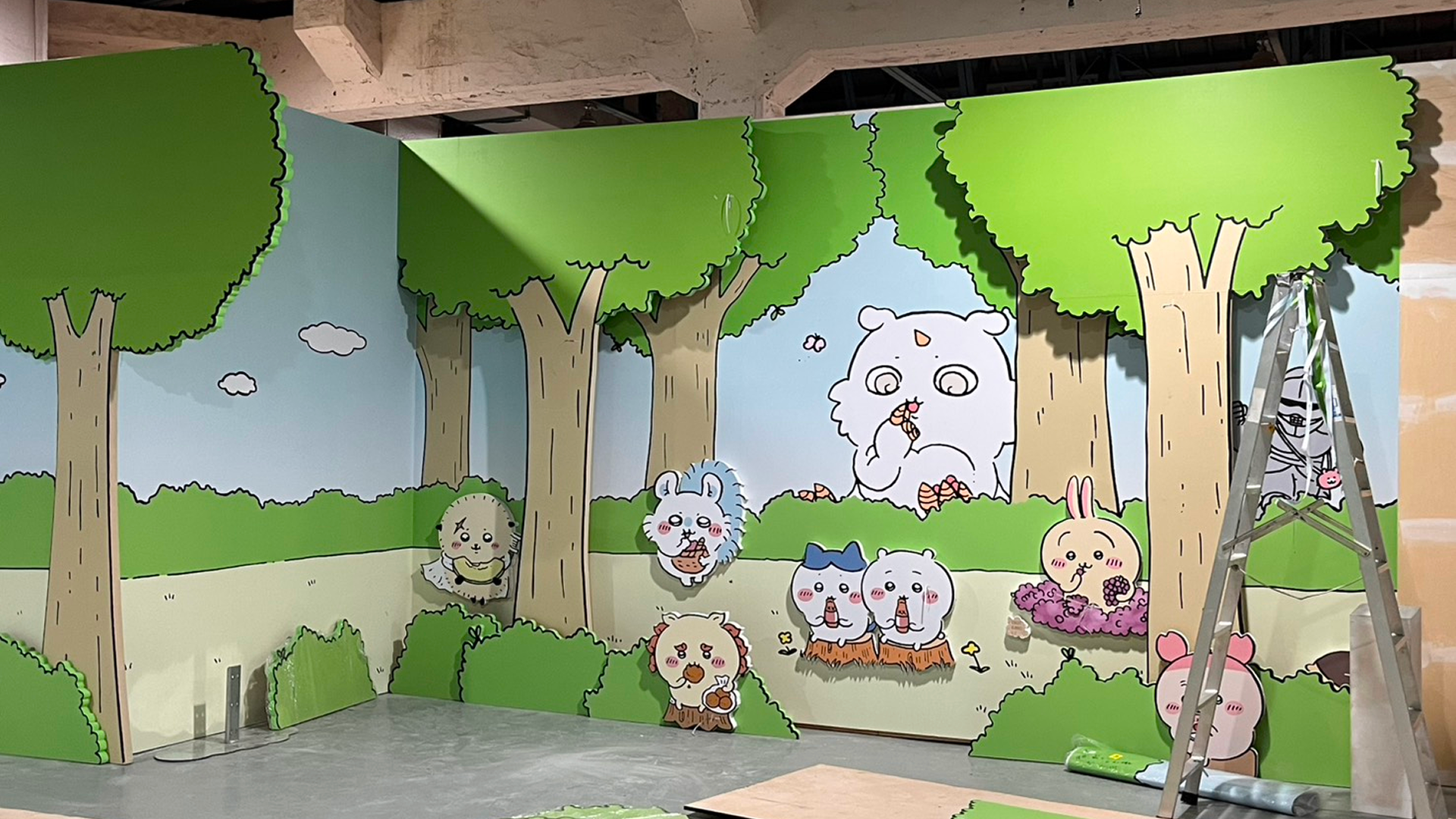

Licensed Graphic Decal Skinning
Graphics installers skinning the boards with character graphics. Checked for seam alignment under high-lux ambient mall lighting.
Merchandise Counter Staging
Staging display cabinets. Checked layout paths against egress codes to ensure safe shopper flows.

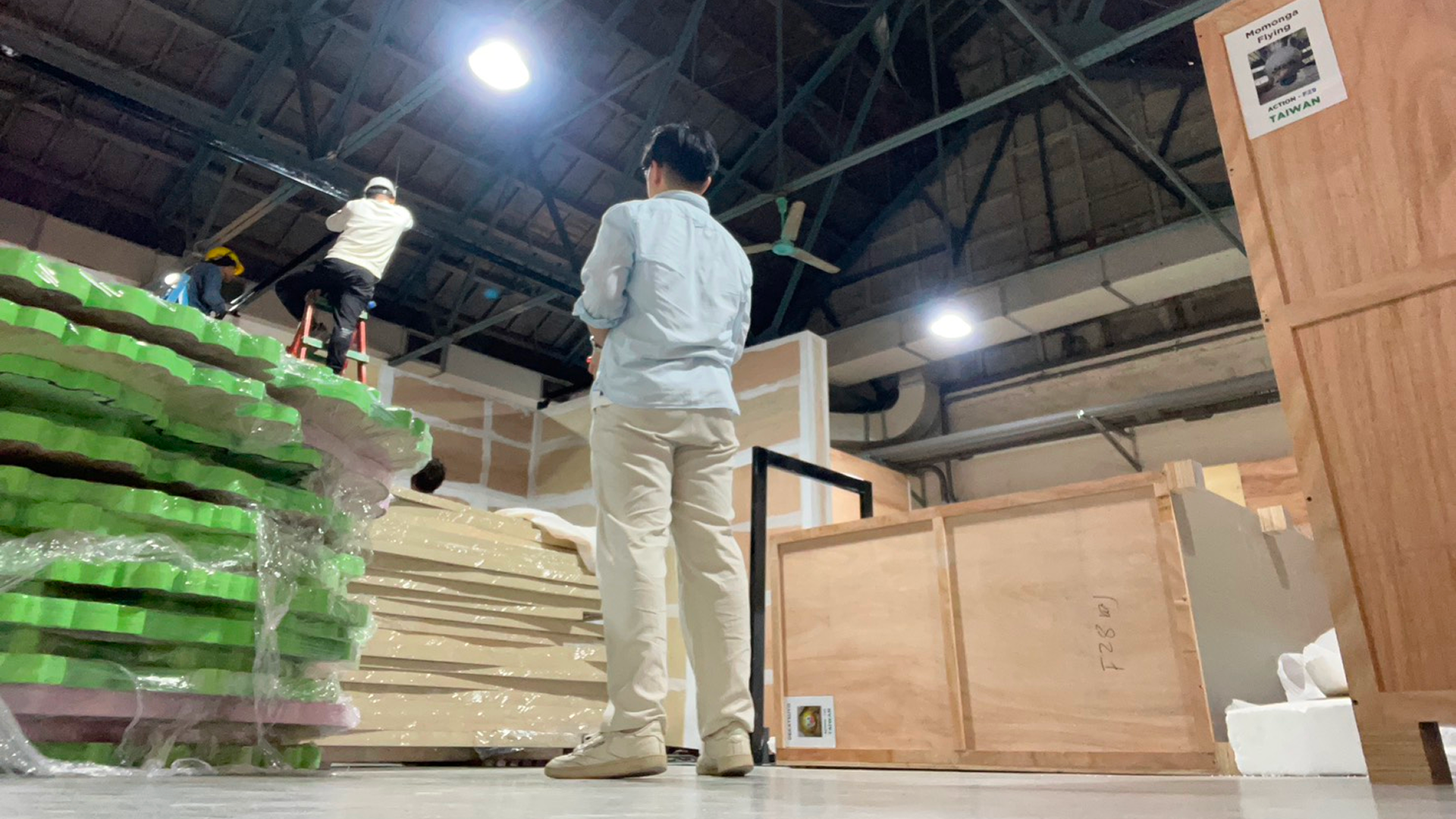

Final Detailing Calibration
Quality check on wall joints and edge trims. Supervised painter touch-ups to eliminate timber gaps before mall inspection.
Stage 3: Completed Venue & Operational Launch
Crowded Operational Launch
Opening morning lines. The freestanding framing successfully supported structural loads during peak visitor density.
Merchandise Staging Setup
The final stocked shelving systems. Visual layout pre-aligned to drawing directives for maximum checkout speeds.
Queuing Flow Direction
Staging exterior queuing stanchions. The corridor coordinates matched security constraints, leading to zero crowd incidents.
